Description

Direct operated pressure relief valve.
Guided poppet design.
Cushion arrangement for greater stability and noise control.

Three sizes.	06, 10 and 20.
Three mounting styles	Threaded cartridge. Threaded port body. Subplate type (Factory Std. & ISO Std.)
Six pressure ranges	Upto 25, 50, 100, 200, 315 & 400 & 700 (in size 06 only) bar.
Two options for pressure adjustment	With set screw and Lock nut.
Two options for pressure adjustment	With hand knob.

Direct operated pressure relief valve - DPR

Section

Unit Dimensions

Threaded cartridge and cavity details

Size	Mass Kg.	A/F1	A/F2	A/F3	M^6H	ØD1	ØD2^H9	ØD3	ØD4	L1	L2	L3	L4^±0.5	L5^±0.2	L6^±0.2	L7^±0.2	L8	L9	Tightening torque Nm.
06	0.45	19	30	4	M28 x 1.5	43	25	15	6	64	64	65	65	45	35	19	15	55	120
10	0.9	19	36	5	M35 x 1.5	48	32	19	10	77	82	80	80	52	41	23	18	69	140
20	1.6	19	46	5	M45 x 1.5	60	40	24	20	103	85	78.5	110	70	54	27	21	91.5	170

Threaded port body

Size NG	Mass Kg.	B1	B2	ØD1	ØD2	ØD3	ØD4	M	A/F1	A/F2	A/F3	L1	L2	L3	L4	L5	L6	H1	H2	T1
06	1.2	45	60	43	6.6	22	G1/4	M6	30	19	4	65	64	20	80	15	40	40	25	11
10	2.8	60	80	48	9	30	G1/2	M8	36	19	5	80	82	22	100	20	49	60	40	15
20	6.2	70	100	60	9	44	G1	M8	46	19	5	78.5	85	34	135	20	65	70	50	15

Subplate Type

( Factory Standard )

Size	Mass Kg.	B1	B2	ØD1	ØD2	A/F1	A/F2	A/F3	L1	L2	L3	L4	L5	L6	H1	H2
06	1.1	45	60	43	6.6	30	19	4	65	64	15	80	55	4	40	21
10	2.4	60	80	48	9	36	19	5	80	82	20	100	70	5	55	28
20	8	70	100	60	9	46	19	5	78.5	85	20	135	100	5	70	70

( ISO Standard ) NG06

Subplate

Size	Model	Mass	B1	B2	B3	B4	M	ØD1	ØD2	ØD3	ØD4	ØD5	H1	L1	L2	L3		L4	L5
06	1NSR03G02	1.2	45	60	22.5	7.5	M6	11	7	22	G1/4	6	25	40	20	8		55	94
10	1NSR05G03	2.4	60	80	30	10	M8	11	7	25	G3/8	10	30	45	21	10		70	115
10	1NSR05G04	2.4	60	80	30	10	M8	11	7	30	G1/2	10	30	45	21	10		70	115
20	1NSR07G08	5.3	70	100	35	15	M8	17.5	11.5	44	G1	20	40	65	34	15		100	140

Size	Model	L6	L7	L8	L9	L10	L11	T1	T2	T3	R	Valve fixing screws S.H.C.S.					Tightening Torque
06	1NSR03G02	110	22	65	39	37	20	10	16	12	25	M6 x 30L, 4 Nos. (10.9)					15 N m
10	1NSR05G03	135	27.5	80.5	40.5	47.5	20	12	16	12	35	M8 x 40L, 4 Nos. (10.9)					35 N m
10	1NSR05G04	135	27.5	80.5	40.5	47.5	20	12	16	14	35	M8 x 40L, 4 Nos. (10.9					35 N m
20	1NSR07G08	170	20	97	42	50	40	22	27	20	40	M8 x 80L, 4 Nos. (10.9)					35 N m

Technical Specifications

Construction ....................................	Direct acting, poppet type.
Mounting style ..................................	Threaded cartridge, Threaded port body or Subplate Type (Factory Std. & ISO Std.)
Interface ...........................................	Factory standard
	Note : Subplate mounting valves having interface as per ISO 6462-AB-03-4-C and ISO 6462-AR-06-2-A are also available on request. Please ask for details
Mounting position .............................	Optional
Flow direction ...................................	From P to T
Operating pressure .... for port P .......	400 bar. (Standard model)
for port P ........	700 bar. (for Model DPR06*700-011 only)
for port T ........	315 bar.
Pressure setting ranges ...................	Upto 25, 50, 100, 200, 315, 400 and 700 bar.
Hydraulic medium ............................	Mineral Oil
Viscosity range ................................	10 cSt. to 380 cSt
Fluid temperature range ....................	-20 °C to +70 °C
Fluid cleanliness requirement ............	As per ISO 16/13 or better.
Mass ...............................................	Refer individual table.
Performance ....................................	Refer graph.

Performance Curves

Oil used : ISO VG 68, Viscosity : 68 cSt @ 40º C, Temp. @ test : 50º C

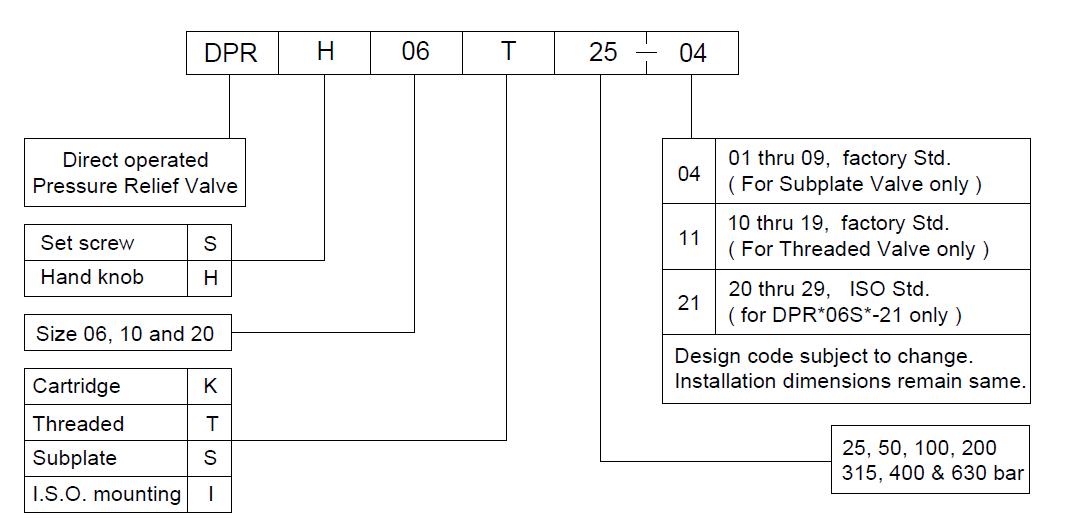

Ordering Informations

Note : Subplate to be ordered separately

Regd. office & Works :
78-80, Machhe Industrial Estate, Machhe, Belgaum - 590 014. Karnataka, INDIA.
Phone : +91-0831-2411001. Fax : +91-0831-2411002 ,
E-mail : polyhydron@vsnl.com , Website : www.polyhydron.com

Updated on May 13, 2010 02:30 pm .

Direct operated pr. relief valve	DPR
Pressure Adjustments
Size
Mounting Styles
Pressure Range
Design Code Subject to Change. Installation dimension remain same for design code
