Description
Designed for single acting cylinders which are supposed to hold pressure. Ensures smooth decompression prior to return of the cylinder ram. Large return oil passage to reduce pressure drops, allowing rams to return under low external forces. Valves can be connected in series for independent multiple single acting cylinder operations. Lever Operated D.C.V.
Section

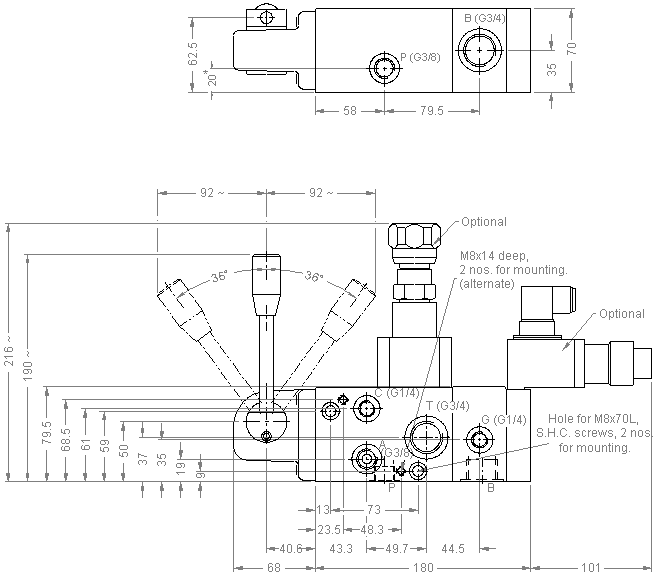

Unit Dimensions



Note : Valve with 'Mirror Image' face option will have ports A, C, T and G on opposite face and dimension 20 (marked *) of port P will be 50.

Technical Specifications
Construction ...................................... Spool and poppet type.
Mounting type ................................... Threaded body.
Mounting position .............................. Optional, horizontal spool axis preferred.
Flow passage areas .......................... Refer hydraulic symbol.
Operating Pressure ........................... For ports P, A, B, C, G ........ 350 bar
T ......... 7 bar max.
Hydraulic medium ............................. Mineral oil.
Viscosity range ................................. 10 to 380 cSt.
Working temperature range .............. -20 °C to +70 °C.
Fluid cleanliness requirement ........ As per ISO code 16/13 or better.
Nominal flow handling capacity ........ Refer flow V/s. pressure drop graph.
Mass .................................…........... 7.8 kg.



Performance Curves

Oil used : ISO VG 68, Viscosity : 68 cSt @ 40º C, Temp. @ test : 50º C



Hydraulic circuit showing typical application of valves 4DLS10**

Ordering Information



4 Service ports 4
D.C.V. lever optd. with pr. holding facility at it's port B DLS
Size 10
Spool holding options
Face option for ports A,C,T and G only
Optional for pressure switch
Optional for pressure regulator
Design Code 01

Odering Code
