Description

Pressure compensated. Check valve option for reverse free flow. Four rotations of hand knob to facilitate setting with ease. Stroke limiter option available for surge free starts at any flow setting. Thumb screw provision to retain valve setting. Available in Subplate and Threaded type.

 2-way Flow control Valve
Section

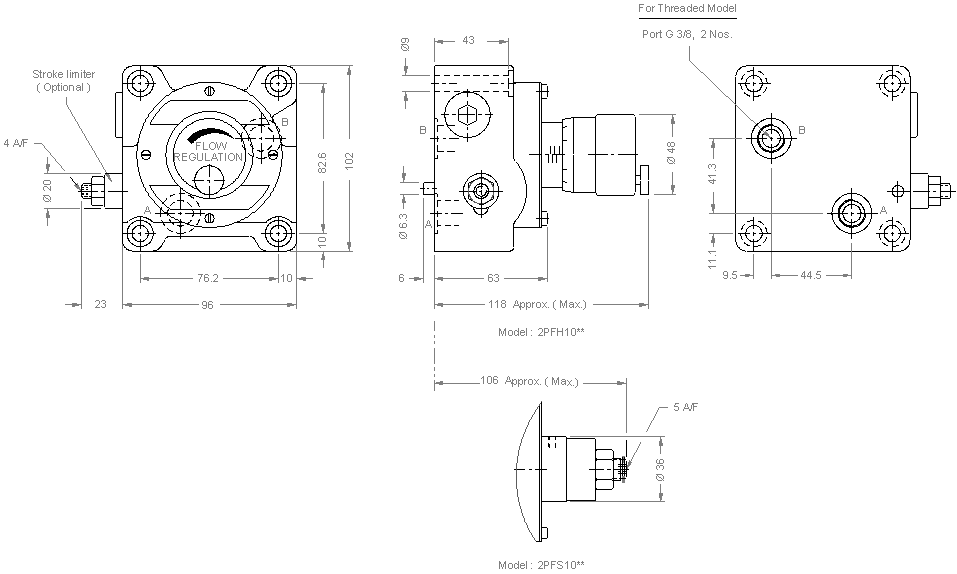

Unit Dimensions

Valve

Subplate Dimensional Information is only for reference

Part No. G ØD1 L
1SF06G03 G3/8 25 13
1SF06G04 G1/2 30 15
1SF06G06 G3/4 36 17



Technical Specifications
Construction ............................... Differential piston with sharp edge orifice.
Mounting .............................…... Subplate and Threaded mounting
Mounting position ...................... Optional.
Interface ...................................... CETOP 06, ANSI 2 F02, ISO 6263-06-05.
Flow direction ............................. Controlled flow from Port A to B with optional
reverse-free check valve.
Operating pressure ..................... 315 bar.
Minimum Pressure differential ...... Between Port A & B  7 bar.
Hydraulic medium ...................... Mineral oil.
Viscosity range ............................ 10 cSt to 380 cSt.
Working temperature range ........ -20 °C to +70 °C.
Fluid cleanliness requirement ..... As per ISO 16/13 or better.
Flow controlling capacity ........... Minimum 0.25 to 4, 8 , 16 , 32 lpm.
Flow Controlling Accuracy .........  ± 2%
Mass ..................................…..... 4.2 kg APPROX
Ordering Informations

Note : Subplate to be ordered separately



Pressure compensated Flow control valve 2PF
Pressure Adjustments
Subplate mounting Size 10
Mounting
Reverse-free flow option
Flow regulation capacity in lpm.
Stroke limiter option
Design Code 13

Product Code
